Kawasaki Vulcan® 1700 Classic LT ALLEMAN CYCLE PLEX SHREVEPORT, LA (318) 636-4386

Showcase Product Detail

New Units » Kawasaki » Vulcan® 1700 Classic LT

	Starting At: $13,799.00

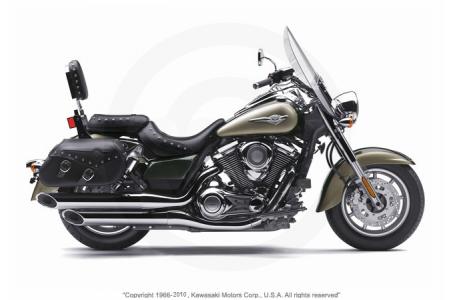

2009 Kawasaki Vulcan® 1700 Classic LT

Request a Quote

Financing Calculator

Financing Form

Metallic Dark Green / Pearl Burnish Beige

Click on a thumbnail to view larger image.

View All Thumbnails Hide Thumbnails

Request a Quote

Financing Calculator

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

Powerful 1700cc V-Twin engine

Liquid cooled, 4-valve per cylinder, fuel-injected 1700cc V-twin engine
Long-stroke 102 x 104mm bore and stroke helps deliver high levels of torque approximately 15 percent greater than that of the Vulcan 1600
Valve system is based on the Vulcan 2000, but uses a SOHC arrangement instead of OHV for more direct engine feel and quicker revving
Semi-dry sump allows a lower crankshaft placement and a longer piston stroke without increasing engine height
Single-pin crank provides the desirable power-pulse feel
Twin counter-balancers handle smoothing the engine pulses
A large capacity airbox is located on both sides of the engine
Small-diameter iridium sparkplugs reach deep into the combustion chamber for high combustion efficiency, especially at low-load operation (near idling)
Features dual mufflers on the right side of the bike
Engine tuning offers superior acceleration in the 50-70mph (80-113km/h) range
Even in overdrive, the engine pulls strongly in this speed range, facilitating overtaking at highway speeds

Next Generation FI

Based on systems already on Ninja 650R and Vulcan 900
Utilizes one sensor in place of the usual three, for less complexity and weight
The cruising-oriented Classic utilizes a FI and exhaust set up to deliver its peak torque and peak horsepower at lower rpm

On Board Diagnostics

Diagnostic system allows self testing of the electronic systems on the Vulcan 1700
Displays codes on the instrumentation, which can be read by owner; using accessory manual

Electronic Throttle Valve System

Kawasaki’s first fully electronic throttle actuation system enables the ECU to control the volume of the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response
Control of both fuel injection and airflow enables precise cold-engine idling speed control
From the rider’s perspective, the electronic throttle valve works like a standard cable-operated throttle the throttle grip is still connected to cables, so the feel at the grip is the same
Twisting the throttle turns a throttle pulley on the throttle body actuating the Accelerator Position Sensor (APS), located on the throttle body, to send a signal to the ECU, which then actuates the throttle valves via a DC motor. Throttle position is confirmed to the ECU by Throttle Position Sensor (TPS) APS and TPS send two sets of signals to the ECU for system redundancy in the unlikely event of a sensor failure.

Transmission / Final Drive

Six-speed transmission
6th gear is an overdrive gear, contributing to stress-free riding and better fuel economy when cruising at highway speeds
28mm carbon fiber final drive belt has a 40 percent higher tensile strength than current Kevlar units nearly twice its width and allows the Vulcan 1700 to use a slim belt only 2mm wider than that on the Vulcan 900
The drive belt is quiet and efficient and helps reduce maintenance chores

Lightweight handling chassis

A more compact package than its predecessors, the new frame features a shorter wheelbase, and shorter distance between the seat and frame head pipe, for improved rider ergonomics and easier maneuverability
Designed to be as light and slim as possible, the frame minimizes the number of forged parts and trims any unnecessary metal. The only forged parts are areas that require additional strength the down-tube joint, engine brackets, side-stand bracket, and rear fender/shock absorber bracket
The new frame is 4.4 pounds lighter than its predecessors, and has a 40% increase in rigidity
The compact design contributes to light handling and facilitates handling at low speeds, especially when executing precise slow speed maneuvers like parking or making U-turns

43mm Telescopic Fork

Provides superb steering feedback and excellent ride quality
Features 4-way preload adjustment

Dual Adjustable Rear Air-Shocks

Feature Air adjustable spring preload to match the load
4-way rebound damping for a smooth and comfortable ride
Feature chromed shock covers, contributing the luxurious finish of the rear of the bike

9-Spoke Cast Wheels

Allows the use of tubeless tire and complement its new muscular styling
130/90 front and 170/70 rear radial tires offer good traction, smooth ride and classy style
Tire choice and suspension settings augment the light handling characteristics

Brakes

Dual 300mm front disc brakes and single 300mm rear disc brake, both with twin-piston calipers provide smooth, powerful stops

V-twin Visual Appeal

Basic engine structure has a great impact on a V-Twin engine’s appearance.
The line created by the top of the airbox and the cylinder heads forms a curved lined that continues to flow through the bike.
Deeply chromed engine covers have curved upper surfaces. Their three-dimensional form adds volume and gives a quality appearance.
The edges of the fins receive a special NC treatment that makes them gleam in sunlight
All the non-chromed parts of the engine have a matt black finish that further accentuates the chromed parts

Bodywork

The fuel tank’s hand-sculpted contours employ constantly varying radii, giving the bike a dynamism that is pleasing both to the eye and to the touch
Its lines flowing through the rest of the bike, the elegantly shaped fuel tank contributes to the Vulcan 1700’s curvaceous figure
Ignition switch allows on-position key removal; preventing key bunches from scratching the instrument cluster or tank while the bike is in operation
Turning the ignition switch collar to the “OFF” position turns the engine off and necessitates re-insertion of the key to restart
Multi-function LCD displays on the tank-mounted instrument cluster are controlled by switches on the right handle. Features include a gear position indicator, fuel gauge, clock, odometer, dual trip meters, remaining range and average fuel consumption
Liberal use of chrome on the engine, fender brackets, light stays, and rear shock cover contrasts nicely with the bodywork’s deep, lustrous paint
Simple design of the seat cover balances rich visual tone of the bodywork
Motif from the front fender continues on the rear fender, which features an elegant LED taillight

Windscreen

Thick, optically correct acrylic plastic windscreen is shaped for smooth airflow and cruiser style
Strong chrome plated steel supports
Two-position height

Seat and Passenger Backrest

Detailed with ½-inch diameter chrome plated brass studs
Strong chrome plated steel supports

Saddlebags

Made of reinforced top grain cowhide carefully selected with minimal flaws and deep dyed to prevent scrapping off the finish
Slant top opening lid, secured with two 1.5-inch wide leather straps with chrome buckles and quick release stealth fasteners
Dual panel lid construction with embossed Vulcan logo detail
Metal reinforced upper edge so bags hold their shape
Rolled and riveted top lid minimizes water entry
One-half inch diameter chrome plated brass stud accents match the seats

Specifications

Engine: Four-stroke, liquid-cooled, SOHC, four valves per cylinder, V-twin
Displacement: 1,700cc / 103.7ci
Bore x stroke: 102 x 104mm
Compression ratio: 9.5:1
Final Drive: Belt
Cooling: Liquid, plus cooling fins
Ignition: Digital fuel injection, dual 42mm throttle bodies
Transmission: Six-speed with overdrive
Frame: Steel, double-cradle with box-section single-tube backbone
Rake / trail: 30° / 6.7 in.
Front Suspension / wheel travel: 43mm hydraulic fork / 5.5 in.
Rear Suspension / wheel travel: Swingarm with twin air-assisted shocks, with 4-way rebound damping / 3.1 in.
Tire, front: 130/90x16
Tire, rear: 170/70x16
Brakes, front / rear: Dual 300 mm discs, dual twin-piston calipers / Single 300 mm disc, twin-piston caliper
Overall length: 98.4 in.
Overall width: 40.4 in.
Overall height: 57.7 in.
Seat height: 28.4 in.
Curb weight: 804.8 lbs.
Fuel capacity: 5.3 gal.
Wheelbase: 65.6 in.
Colors: Metallic Nocturne Blue / Pearl Burnish Beige, Metallic Dark Green / Pearl Burnish Beige
Warranty: 12 months
Good Times™ Protection Plan: 12, 24, 36 or 48 months

Specifications

Engine
Engine Type	Four-stroke, liquid-cooled, SOHC, four valves per cylinder, V-twin
Displacement	1,700 cc (103.7 cu. in.)
Bore and Stroke	102 x 104 mm
Cooling	Liquid, plus cooling fins
Compression Ratio	9.5:1
Fuel System	Digital fuel injection, dual 42 mm throttle bodies
Ignition	Digital fuel injection, dual 42 mm throttle bodies
Chassis
Front Suspension	43 mm hydraulic fork; Travel: 5.5 in.
Front Brakes	Dual 300 mm discs, dual twin-piston calipers
Front Tire	130/90x16
Rear Suspension	Swingarm with twin air-assisted shocks, with 4-way rebound damping; Travel: 3.1 in.
Rear Brakes	Single 300 mm disc, twin-piston caliper
Rear Tire	170/70x16
Dimensions
Dry Weight	804.8 lbs
Fuel Capacity	5.3 gal.
Wheelbase	65.6 in.
Seat Height	28.4 in.
Trail	6.7 in.
Rake	30°
Transmission
Transmission	Six-speed with overdrive
Final Drive	Belt
General
Colors	Metallic Nocturne Blue / Pearl Burnish Beige, Metallic Dark Green / Pearl Burnish Beige
Warranty	Standard: 12 months; Optional: Good Times™ Protection Plan: 12, 24, 36 or 48 months

Compare Models

Chassis

Year	2009
Manufacturer	Kawasaki
Model	Vulcan® 1700 Classic LT
Style	Cruiser
MSRP*	$13,799.00
Front Suspension	43 mm hydraulic fork; Travel: 5.5 in.
Front Brakes	Dual 300 mm discs, dual twin-piston calipers
Front Tire	130/90x16
Rear Suspension	Swingarm with twin air-assisted shocks, with 4-way rebound damping; Travel: 3.1 in.
Rear Brakes	Single 300 mm disc, twin-piston caliper
Rear Tire	170/70x16
Dimensions
Dry Weight	804.8 lbs
Fuel Capacity	5.3 gal.
Wheelbase	65.6 in.
MPG
Seat Height	28.4 in.
Trail	6.7 in.
Rake	30°
Engine
Engine Type	Four-stroke, liquid-cooled, SOHC, four valves per cylinder, V-twin
Displacement	1,700 cc (103.7 cu. in.)
Bore and Stroke	102 x 104 mm
Cooling	Liquid, plus cooling fins
Compression Ratio	9.5:1
Fuel System	Digital fuel injection, dual 42 mm throttle bodies
Ignition	Digital fuel injection, dual 42 mm throttle bodies
General
Speedometer
Tachometer
Odometer
Colors	Metallic Nocturne Blue / Pearl Burnish Beige, Metallic Dark Green / Pearl Burnish Beige
Warranty	Standard: 12 months; Optional: Good Times™ Protection Plan: 12, 24, 36 or 48 months
Transmission
Transmission	Six-speed with overdrive
Final Drive	Belt

Current Promotions

There are currently no promotions available for this product.
