	Starting At: $2,699.00

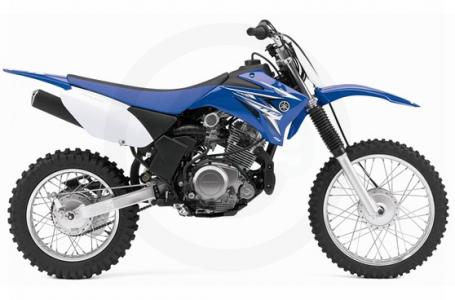

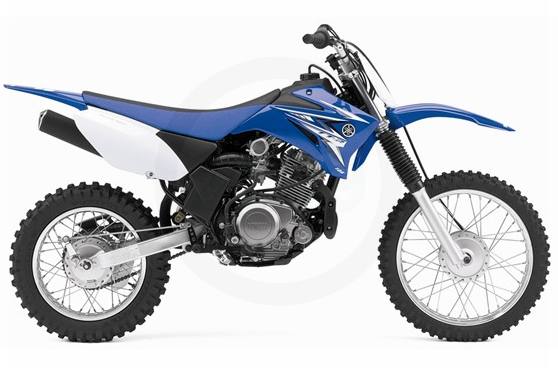

2009 Yamaha TT-R125E

Request a Quote

Financing Calculator

Financing Form

Team Yamaha Blue/White

Request a Quote

Financing Calculator

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

Good, Clean, Dirty Fun.

TT-R 125E has a push button electric starter, four-stroke powered engine, seat height of less than 30.5 inches with over 10 inches of ground clearance and long travel suspension, with 17-front and 14-inch rear wheel combination.

All the TT-R performance with smaller wheels and lower seat height than its bigger brother.

Key Features

Big fun for the whole family in a small package, the YZ-styled four-stroke-powered TT-R125s beg to be ridden by everyone from bigger kids to adults.
A seat height of less than 32 inches makes these accessible to most riders, but over 10 inches of ground clearance and long-travel suspension at both ends mean they’re also serious trail bikes.
“E” model features pushbutton electric starting, a 17- and 14-inch wheel combination for con?dence-building handling for novice riders and drum brakes for consistent, predictable stops.

Engine Features

Potent, 124cc air-cooled SOHC four-stroke powerplant puts out torquey, broadband power tuned for maximum off-road performance in a wide range of trail conditions.
20mm Mikuni® carburetor ensures crisp, dependable throttle response.
Smooth-shifting, five-speed transmission with heavy-duty clutch is geared for maximum versatility and usable power delivery.
CDI ignition system is ultra-reliable and never needs maintenance.
Automatic cam chain tensioner means minimal maintenance and longer engine life.
Easy-access, tool-free air filter adds extra convenience during maintenance.
Lightweight exhaust system features quiet, USFS-approved spark arrestor.

Chassis/Suspension

Rigid frame design features a long wheelbase to accommodate bigger riders while maintaining quick, agile off-road handling.
31mm telescopic front fork with 7.1 inches of travel for plush, confidence-inspiring control over rough terrain.
Smaller, 17-inch front and 14-inch rear wheels on the 125E inspire great rider confidence by keeping the seat low and the steering light.
Single rear shock with 6.3 inches of travel on the 125E delivers progressive suspension performance to smooth out rugged trails.
Box-section swingarm features snail-type chain adjusters for quick and easy chain adjustments.
Front and rear brakes deliver strong, dependable stopping power.
Knobby tires offer superb grip and exceptional wear.

Additional Features

Long, YZ-style seat is low, comfortable and allows easy rider movement.
Team Yamaha–inspired colors, graphics, and front and side number plates create styling similar to larger YZ lineup.
Sleek, narrow fuel tank helps create big-bike look and feel.
Large, folding, cleated footpegs provide excellent footing even in wet or muddy conditions.
Durable fork boots ensure excellent fork seal and stanchion tube protection.

Engine

Type: 124 cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke: 54.0 mm x 54.0 mm
Compression Ratio: 10.0:1
Carburetion: Mikuni® VM20
Ignition: CDI
Transmission: Constant-mesh 5-speed; multiplate wet clutch
Final Drive: Chain

Chassis

Suspension/Front: Telescopic fork; 7.1-in. travel
Suspension/Rear: Single shock; 6.3-in. travel
Brakes/Front: 110 mm drum
Brakes/Rear: 110 mm drum
Tires/Front: 70/100-17 40M
Tires/Rear: 90/100-14 49M

Dimensions

Length: 72.6 in.
Width: 30.9 in.
Height: 41.7 in.
Seat Height: 30.5 in.
Wheelbase: 49.2 in.
Ground Clearance: 10.4 in.
Fuel Capacity: 1.6 gal.
Wet Weight: 198 lbs.

Warranty

Warranty: 90 Day (Limited Factory Warranty)

Specifications

Engine
Engine Type	124 cc air-cooled SOHC 4-stroke; 2 valves
Displacement	124 cc
Bore and Stroke	54.0 mm x 54.0 mm
Cooling	Air
Compression Ratio	10.0:1
Fuel System	Mikuni® VM20
Ignition	CDI
Chassis
Front Suspension	Telescopic fork; 7.1-in. travel
Front Brakes	110 mm drum
Front Tire	70/100-17 40M
Rear Suspension	Single shock; 6.3-in. travel
Rear Brakes	110 mm drum
Rear Tire	90/100-14 49M
Dimensions
Dry Weight	198 lbs.
Fuel Capacity	1.6 gal.
Wheelbase	49.2 in.
Ground Clearance	10.4 in.
Seat Height	30.5 in.
Transmission
Transmission	Constant-mesh 5-speed; multiplate wet clutch
Final Drive	Chain
General
Colors	Team Yamaha Blue/White
Warranty	90 Day (Limited Factory Warranty)

Compare Models

Chassis

Year	2009
Manufacturer	Yamaha
Model	TT-R125E
Style	Off-Road
MSRP*	$2,699.00
Front Suspension	Telescopic fork; 7.1-in. travel
Front Brakes	110 mm drum
Front Tire	70/100-17 40M
Rear Suspension	Single shock; 6.3-in. travel
Rear Brakes	110 mm drum
Rear Tire	90/100-14 49M
Dimensions
Dry Weight	198 lbs.
Fuel Capacity	1.6 gal.
Wheelbase	49.2 in.
Ground Clearance	10.4 in.
Seat Height	30.5 in.
Trail
Rake
Engine
Engine Type	124 cc air-cooled SOHC 4-stroke; 2 valves
Displacement	124 cc
Bore and Stroke	54.0 mm x 54.0 mm
Cooling	Air
Compression Ratio	10.0:1
Fuel System	Mikuni® VM20
Ignition	CDI
General
Colors	Team Yamaha Blue/White
Warranty	90 Day (Limited Factory Warranty)
Transmission
Transmission	Constant-mesh 5-speed; multiplate wet clutch
Final Drive	Chain

Current Promotions

There are currently no promotions available for this product.
