Yamaha Raptor 250 ALLEMAN CYCLE PLEX SHREVEPORT, LA (318) 636-4386

Showcase Product Detail

	Starting At: $3,899.00

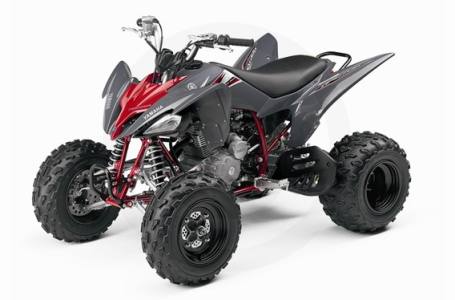

2008 Yamaha Raptor 250

Request a Quote

Financing Calculator

Financing Form

Click on a thumbnail to view larger image.

View All Thumbnails Hide Thumbnails

Request a Quote

Financing Calculator

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

In a class by itself! There's more than one way to skin a trail, and the all-new Raptor 250 does it with light weight and cat-like reflexes. Packing big Raptor styling and real Sport ATV performance, this feisty Raptor is in a class by itself.

Key Features

Lightest production sport ATV ever—for amazingly nimble handling and a great power-to-weight ratio.
Aggressive Raptor style and stance for maximum performance and excellent, all-day sport-riding ergonomics.
Class-exclusive five-speed manual transmission has a gear for almost any terrain.
Torquey, durable air-cooled engine puts out plenty of power and starts with the push of a button.
Low-profile 19-inch rear tires for outstanding traction and handling.
Longest suspension travel and lowest seat in its class for true sport handling.

Engine

Light and powerful 249cc air-cooled SOHC four-stroke single produces a broad, deep powerband.
Five-speed gearbox with manual clutch provides the flexibility to tackle pretty much any track or trail.
29mm Mikuni carburetor provides light throttle pull and excellent throttle response across the entire rpm range.
Electric starting is standard equipment and works in any gear.
DC-CDI ignition system delivers consistent spark at all rpm levels—for quick throttle response and a smooth, broad powerband.
Ceramic composite cylinder liner for greatly reduced wear and excellent heat dissipation.
Oil cooler keeps engine temps down and lubrication up in hot conditions.
New-design airbox features no-tools air filter access.
New-design three-chamber muffler is light, quiet and boosts low and midrange performance.

Chassis/Suspension

Light, strong, short-wheelbase chassis creates a quick, super-responsive high-performance package.
Low, 28.7-inch seat height enhances rider comfort and allows optimal rider movement.
Independent double-wishbone front suspension with five-way preload-adjustable shocks gives 7.5 inches of wheel travel.
Lightweight aluminum wheels reduce unsprung weight for excellent suspension performance, acceleration, deceleration and handling.
Triple hydraulic disc brakes deliver excellent stopping power even in wet conditions.
Extra-wide, YFZ450-style footpegs provide excellent grip and rider comfort.
Easy-to-use, flip-type handlebar-mounted parking brake can be set with one hand.
Rigid and light swingarm rear end is controlled by a shock with adjustable preload and 7.9 inches of wheel travel, for consistent wheel control and rider comfort.
New-design Dunlop tires deliver outstanding traction for razor-sharp handling in a variety of terrain.
Easy-adjust eccentric chain adjustment feature means hassle-free chain maintenance.
Flat, composite skid plates provide maximum underbelly protection.
Rugged steel grab bars front and rear help fend off debris and damage.

Specifications

Type: 249cc air-/oil-cooled 4-stroke; SOHC, 2 valves
Bore x Stroke: 74.0 x 58.0mm
Compression Ratio: 9.5:1
Carburetion: Mikuni 29mm BSR
Ignition: DC-CDI
Starting System: Electric
Transmission: 5-speed; wet multiplate clutch
Drive Train: 2WD; sealed O-ring chain, eccentric adjustment
Suspension/Front: Independent double wishbone; 5-way preload-adjustable shocks, 7.5-in travel
Suspension/Rear: Swingarm, preload-adjustable, 7.9-in travel
Brakes/Front: Dual hydraulic disc
Brakes/Rear: Hydraulic disc
Tires/Front: AT20 x 7-10
Tires/Rear: AT19 x 10-9
L x W x H: 64.0 x 42.1 x 40.9 in
Seat Height: 28.7 in
Wheelbase: 43.7 in
Ground Clearance: 3.9 in
Fuel Capacity: 2.4 gal
Dry Weight: 313 lb
Lighting: Dual 30W Krypton multi-reflector headlights & 21/5W brakelight
Warranty: 6 Month (Limited Factory Warranty)

Additional Features

Dual 30-watt multi-reflector Krypton headlights straight off the potent YFZ450 add the perfect menacing appearance. Taillight has an incorporated brake light for added convenience.
Waterproof electrical connectors for outstanding durability and reliability.
Easy-access grease fittings on all chassis lubrication points simplify maintenance and help extend the life of the Raptor 250.
New-design bodywork comes off without the need to disassemble electrical parts, airbox or wiring harness—for easy maintenance.
2.4-gallon fuel tank means less filling up and longer, more enjoyable rides

Specifications

Engine
Engine Type	249 cc air-/oil-cooled 4-stroke; SOHC, 2 valves
Displacement	249 cc
Bore x Stroke	74.0 x 58.0 mm
Engine Cooling	air-/oil-cooled
Starting System	Ignition: DC-CDI; Starting System: Electric
Chassis
Front Suspension	Independent double wishbone; 5-way preload-adjustable shocks
Front Travel	7.5 in.
Front Brake Type	Dual hydraulic disc
Front Tires	AT20 x 7-10
Rear Travel	7.9 in.
Rear Suspension	Swingarm, preload-adjustable
Rear Tires	AT19 x 10-9
Dimensions/Capacities
Dry Weight	313 lbs
Rear Rack Capacity	Hydraulic disc
Fuel Capacity	2.4 gal.
Ground Clearance	3.9 in.
Machine Dimensions (LxWxH)	64.0" x 42.1" x 40.9"
Wheelbase	43.7 in.
Drive Train
Drive Train	2WD; sealed O-ring chain, eccentric adjustment
Transmission	5-speed; wet multiplate clutch
General
Lighting	Dual 30W Krypton multi-reflector headlights & 21/5W brakelight
Colors	Team Yamaha Blue/White, Gray/Red
Warranty	6 Month (Limited Factory Warranty)

Compare Models

Chassis

Year	2008
Manufacturer	Yamaha
Model	Raptor 250
Style	Sport
MSRP*	$3,899.00
Front Suspension	Independent double wishbone; 5-way preload-adjustable shocks
Front Travel	7.5 in.
Front Brake Type	Dual hydraulic disc
Front Tires	AT20 x 7-10
Rear Suspension	Swingarm, preload-adjustable
Rear Travel	7.9 in.
Rear Brake Type
Rear Tires	AT19 x 10-9
Frame
Dimensions/Capacities
Dry Weight	313 lbs
Front Rack Capacity
Rear Rack Capacity	Hydraulic disc
Towing Capacity
Fuel Capacity	2.4 gal.
Ground Clearance	3.9 in.
Machine Dimensions (LxWxH)	64.0" x 42.1" x 40.9"
Wheelbase	43.7 in.
Drive Train
Drive Train	2WD; sealed O-ring chain, eccentric adjustment
Final Drive
Transmission	5-speed; wet multiplate clutch
Engine
Engine Type	249 cc air-/oil-cooled 4-stroke; SOHC, 2 valves
Displacement	249 cc
Bore x Stroke	74.0 x 58.0 mm
Cylinders
Engine Cooling	air-/oil-cooled
Fuel System
Starting System	Ignition: DC-CDI; Starting System: Electric
Alternator
General
Speedometer
Tachometer
Odometer
Lighting	Dual 30W Krypton multi-reflector headlights & 21/5W brakelight
Colors	Team Yamaha Blue/White, Gray/Red
Warranty	6 Month (Limited Factory Warranty)
